UPTab DisplayPort to Dual DisplayPort 8K Adapter
UPTab Dual 4K at 60Hz Adapter
Dual HDMI
Dual HDMI adapter
Dual HDMI with Power Cable

UPTab

DisplayPort to Dual DisplayPort 8K MST Adapter

€48,95
In stock, ready to ship

Pairs well with

SAME DAY SHIPPING order by 11 AM (EST)

Free Shipping Orders Over $50

Technical Support

30 Days Return

1-Year Warranty

Product details

Description

This UPTab DisplayPort 1.4 to Dual DisplayPort 8K MST Adapter allows a DisplayPort-enabled device to connect to two DisplayPort-enabled displays for video mirroring, video extension, or viewing a single video image across two displays. The hub is perfect for graphic design, spreadsheet analysis, digital signage applications, and gaming.

Improve multitasking and increase productivity by configuring the hub to work as a splitter with the same video image on each display,extending a video image to multiple displays, or expanding a video image by joining multiple monitors together as one display. The hub is ideal for a multiple-display desk setup, and the lightweight, small form factor also makes it easy to carry while traveling or just on the go. The hub supports resolutions up to 8K (7680 x 4320) at 60Hz when connected to a single display or 8K (7680 x 4320) at 30Hz or 4K (4096 x 2160) at 60Hz when connected to dual displays.

The adapter will enable true RGB color without the visual color degradation that occurs in other color formats that use sub-sampling. When audio is desired, the DisplayPort adapter will also transmit up to 8-channel audio for an immersive audio and video experience. Transmits video over dual DisplayPort single or simultaneously. Extended display mode is supported only for Windows 10,8 and 7. Currently, Apple macOS does not support (EST) Extended mode.

Note: This Adapter requires additional external power. The power cable must be connected to USB 3.0 or USB 4.0 to provide adequate power to the adapter; USB 2.0 is NOT supported (USB Cable Included). This MST hub is DisplayPort 1.4 and 1.2 compliant. The source device video card and display must support DisplayPort 1.4 and MST.

Computers with Integrated GPU: Intel HD 4000. This adapter will work only in Mirror Mode SST.

Mirror Mode for all Intel HD Graphics (Celero/Pentium CPU-GPU)

  • Intel HD Graphics 2000 (iCore DC/QC Intel 7 Series Express Chipset CPU-GPU combo)
  • Intel HD Graphics 2500/4000 (i3/i5/i7 DC/QC Intel 7 Series Express Chipset CPU-GPU Combo)

Features:

  • Input: DisplayPort 1.4
  • Output: Dual DisplayPort Ports
  • Single Display up to 8K (7680 x 4320) at 60Hz
  • Dual Display up to 8K (7680 x 4320) at 30Hz or 4K (4096 x 2160) at 60Hz
  • With support of the 4:4:4 color format
  • Transmit up to 8 channel audio for an immersive audio and video experience
  • Support Windows Display Extended and Mirror mode (MST and SST)
  • Support MacOS Mirror mode (SST)

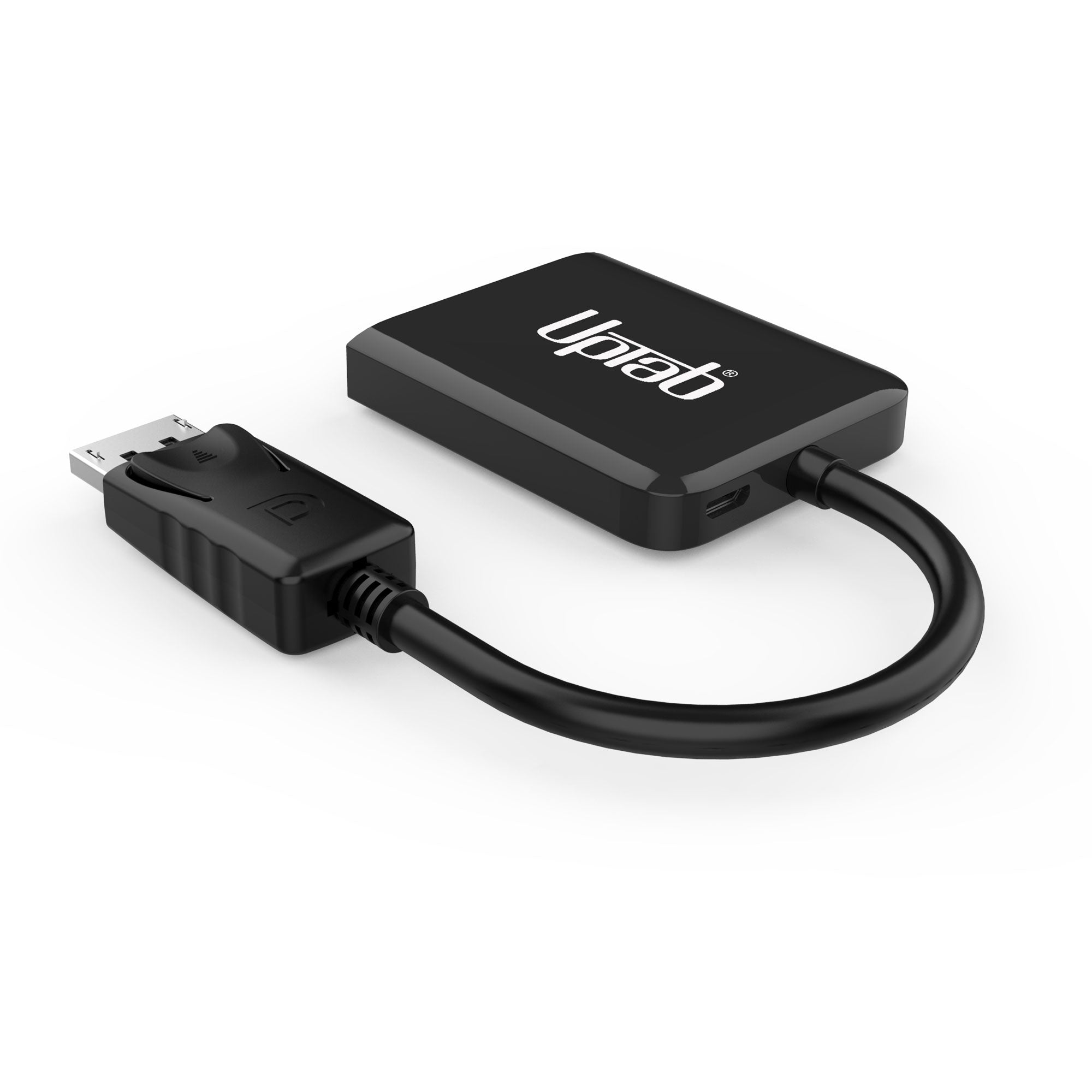

  • USB Micro-B port for additional power (see note)

In The Box:

  • 1x UPTab DisplayPort to Dual DisplayPort 8K Adapter

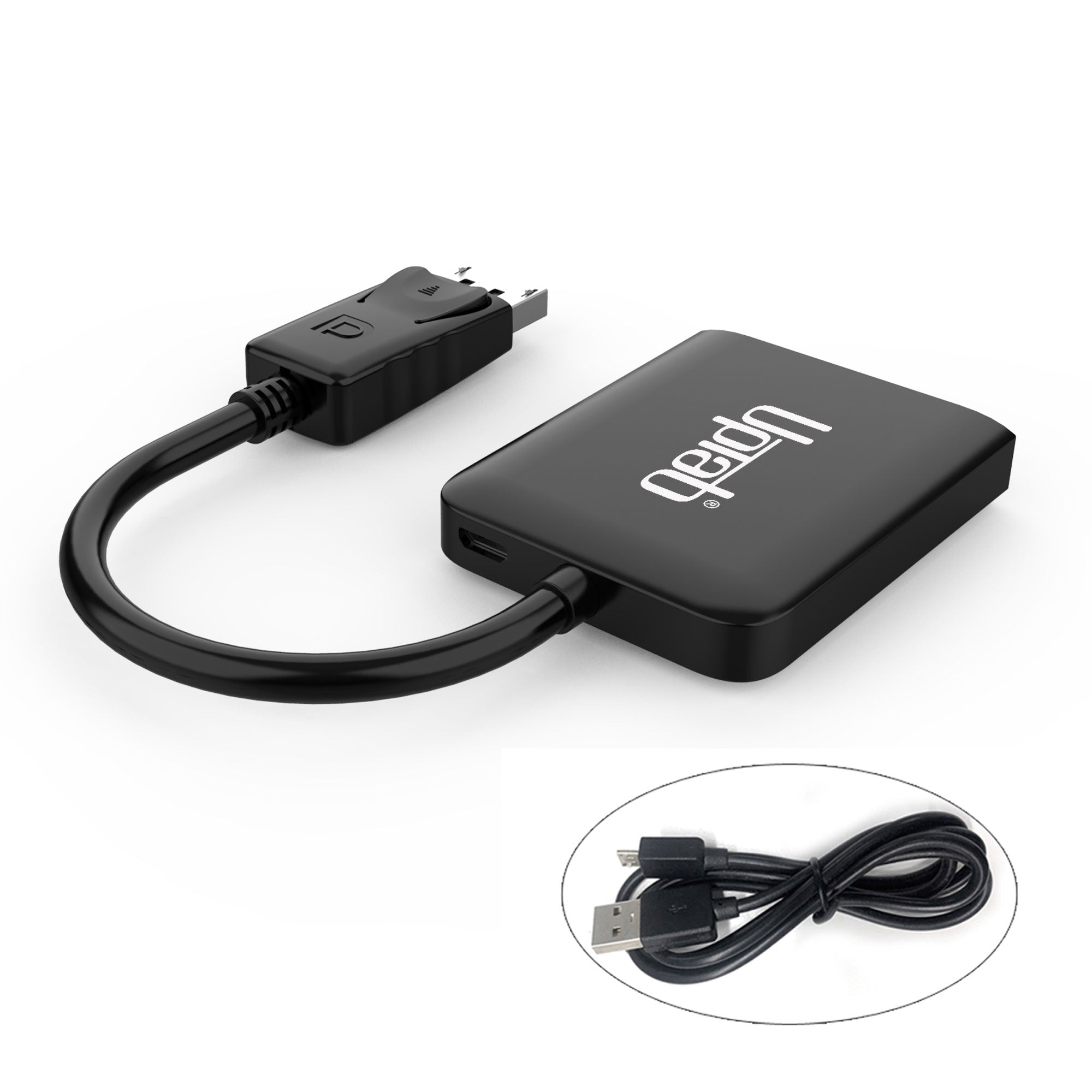

  • 1x USB to Micro USB 40" (1m) Cable

Customer Reviews

Based on 21 reviews
38%
(8)
14%
(3)
14%
(3)
10%
(2)
24%
(5)
T
Tony H.
Works great

I was able to split and extend to 2 monitors.

J
Jossiwales
Works

Works

P
Paul Richter
Extremely Well Built

This UPTab product is extremely well built. It's solid and fully functional -- the case is even covered in a protective plastic sheet to prevent any scratches during final assembly and shipping. There is only one area where I would make improvement: I would ask for in the package and that would be some instructions regarding the use of a powered USB connection. I use a very modern NVidia RTX graphics card, and it required the USB powered cable in order for it to work properly. I had to research online for that fact. That's inconvenient and initially caused my system to crash when I just put the monitor cables on by themselves. I didn't even see the small USB port on the back until the online instruction pointed it out. So there you have it. You have a great product at a great price. It just needs to come with an advisory on the use of the USB port. Thank you for all your hard work.

A
Alexander Barroca
Don’t Buy... Waste of money and unhelpful customer service!!!

This is a completely useless waste of money. I originally purchased this device for my home office. After a few short months it stopped working. I contacted the manufacturer for a replacement and they had me try several steps. Nothing worked. They eventually sent a replacement. The replacement is even worse. It causes the screens to flicker on an off repeatedly. I asked them to replace again and they said it is impossible and must be my fault. But I I have tried everything they suggested and it still doesn’t work. I guess I am just out the money now.

G
Gaby
Excellent product

For me its working perfectly with 2 monitors one is 4k 30hz and on 2k at 60hz both with good image and not errors at al.
